System Overview

5048S-RDQS offers unparalleled storage technology. It is designed and developed to meet the needs of medium-range to high-end IP video surveillance applications. It supports 512 channels of IP camera inputs, and 1024Mbps incoming/recording bandwidth. Combined with hot-swap power supplies, fans and hard disk drives, the EVS offers real Enterprise Class availability. This EVS is ideal for a wide range of applications such as public safety, transportation stations, government institutions, hotel resorts, shopping malls, city centers, and financial institutions, where demand expansion flexibility, high reliability and centralized storage management. This EVS is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4.

Functions

Modular Design All key modules are hot-swap, redundant configuration. Redundant fans, redundant power, multi-redundant design ensures stability. Brand new design for HDD carrier, ensures good cooling, stability and safety for hard disks. Storage Extension Capacity Local extension, connect to ESS extension storage by mini SAS interface. Extension storage support redundant power and RAID. RAID 0/1/3/4/5/6/10/50/60 Offering a balance between storage performance, storage capacity, and data integrity, the NVR features fruitfull RAID 0/1/5/6/10/50/60 for faster and safer recording. N+M Hot Standby The highly reliable redundancy N+M Hot Standby design provides a secure, failover technique ensuring immediate backup. In the event of a system failure, the slave instantly takes over the master ensuring no data is lost. ANR (Automatic Network Replenishment Technology) Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it.5048S-RDQS

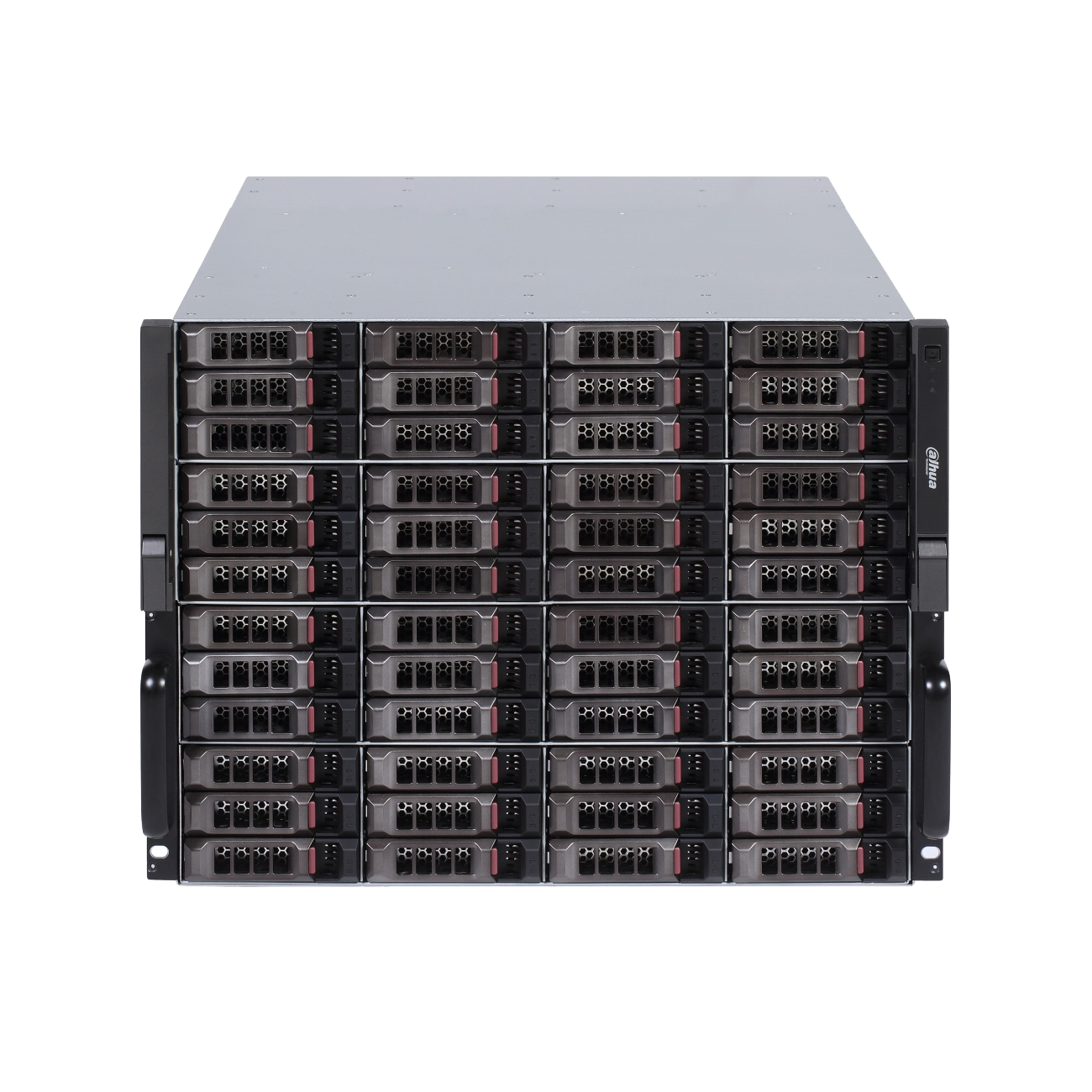

48-HDD Enterprise Video Storage

> Intel Processor
> Max 512 IP Camera Inputs
> Max 1024Mbps Incoming/recording Bandwidth
> 48 HDDs, SATA, Hot-Swap
> Supports RAID 0/1/3/4/5/6/10/50/60/JBOD, Hotspare
> iSCSI and Mini SAS for Expanded Storage Space
> Support standard iSCSI Protocol Storage
> Modular&Cableless Design
> Redundant Power

Specifications


System

Main Processor

64-bit high-performance Intel processor

Controller

Single controller

Memory

4GB by default(Optional Extension 128GB SSD)

Operating System

Embedded LINUX

User Interface

Web

Working Mode

Video Stream Mode

Max 512 channel

1024Mbps for incoming/recording

512Mbps for incoming/recording/forwarding

64 channel(128Mbps) network playback

Transfer Mode

4096Mbps front-end connection

4096Mbps network transfer

IP SAN Mode

Storage bandwidth shall not be less than 2.4Gbps

Storage

HDD Amount

48 HDDs, Up to 8 TB capacity for each HDD

SATA HDD composite connection

miniSAS

2 miniSAS ports, for storage extension

HDD Installation

Additional HDD bracket,

HDD hot-swap, HDD online replacement

HDD Mode

Single, RAID 0/1/3/4/5/6/10/50/60(Enterprise-level HDDs are recommended), JBOD, hotspare

Storage Management

HDD Manager

Non-working HDD hibernation to guarantee sound ventilation, reduce power consumption and enhance HDD life span

HDD bad track mapping to enhance HDD life span

RAID Rebuild

Dynamically adjust RAID rebuild speed to guarantee system load balance

Logic Volume Manager

Support iSCSI volume management, NAS(SMB/NFS/FTP) volume management

Snapshot

Support snapshot function, create user volume to back data.

Extract Frame

Support extracting P frame function. Customizied extracting period and frame rate setup.

Cluster Service

N+M cluster service

ANR

After diconnection, system can download the record file from the SD card on the network camera to maintain the full record file.

Shortcut RAID Creation

Click one button to create RAID conveniectly.

Playback and Backup

Search Mode

Time/Date, Channel, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Fast play, Slow play, Full screen, Backup selection, Digital zoom

Backup Mode

USB Device/Network/eSATA Device

Third-party Support

Third-party Support

Dahua, AEBell, Arecont, AXIS, Dynacolor, HIKVISION, LG, Panasonic, PSIA, Samsung, Sony, Vivotec, and more



Recording

IP Camera Input

512 Channel

Record Rate

1024Mbps

Record Mode

Manual, Schedule(Regular, Continous), Motion Detection, Alarm

Record Interval

1 ~ 120 min(default 60 min)

Pre-record 1 ~ 30 sec, Post-record 10 ~ 300 sec.

I frame storage by period.

Auxiliary Interface

USB

2 USB 3.0

eSATA

1 eSATA

RS232

1 Port, for PC communication and Keyboard

Network

Interface

1 management RJ-45 ports (10/100/1000Mbps)

4 data RJ-45 ports (10/100/1000Mbps)

Network Mode

Multi-address, Fault-tolerance, Load balance, Link aggregation

Network Function

HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTP, RTCP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, iSCSI, SMB, NFS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)

Expansion Interface

2 Giga Optical Fiber Interface

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, CGI Conformant

Electrical

Power Supply

AC100V ~ 240V, 47 ~ 63 Hz

2 + 1 Redundant power, Hot-swap

Power Consumption

175W ~ 950W (With HDD)

Fan

DC12V, 1.5A, Diameter 80mm

MTBF > 100,100 hours, Hot-swap

Environmental

Working Conditions

0°C ~ +40°C (+32°F ~ +104°F), 10 % ~ 80% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 5% ~ 90% RH

Working Altitude

-60m ~ 3000m

Construction

Chassis

1.2mm extra-thickness hot-dip galvanized steel.

High accuracy aluminum alloy slider.

Self-developed patent removable HDD bracket.

Dimensions(W x D x H)

8U, 482.6mm x 558.5mm x 347.8mm ;

(19.0" x 22.0" x 13.7")

Net Weight

50kg (110.2 lb) (without HDD)

Gross Weight

70kg (154.3 lb)

Installation

Standard 19-inch rack installation



Certifications

CE

EN55022, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2009

UL

UL 60950-1 and CAN/CSA C22.2 No.60950-1
