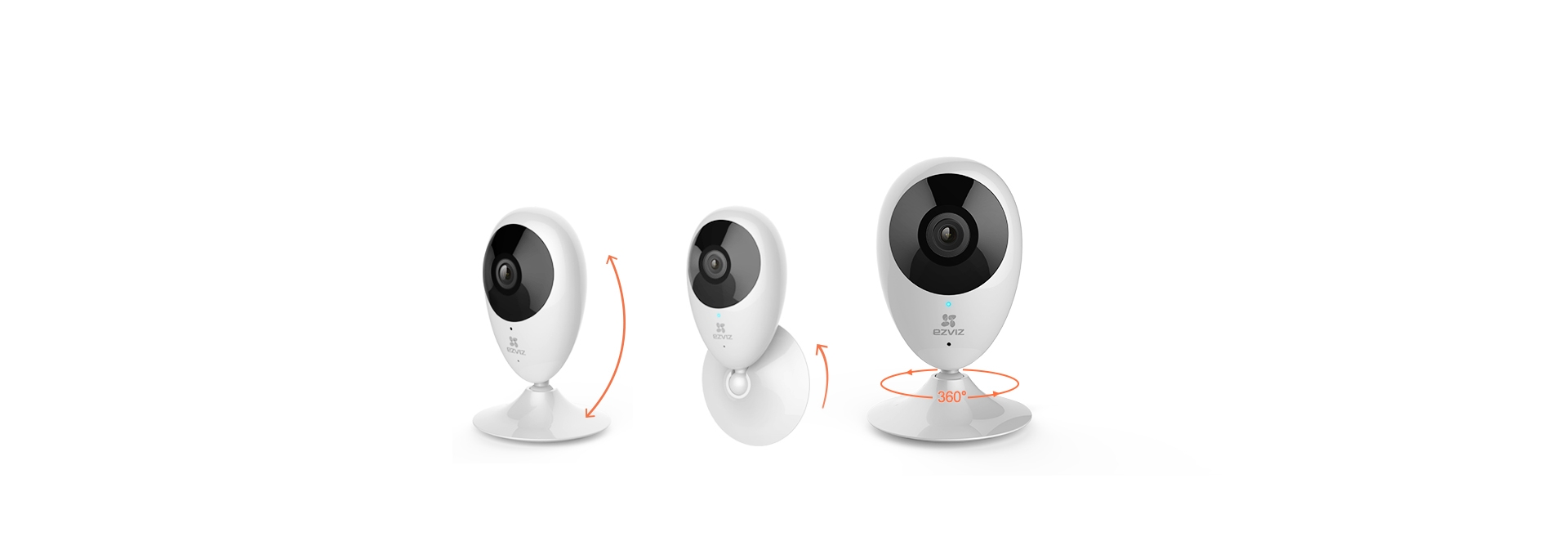

CAMERA HIKVISION EZIVIZ CS-CV206

Model parameters

Name

CV-206

Model

720P Wi-Fi Indoor Cloud Camera

Camera

Image Sensor

1/4”Progressive Scan CMOS

Minimum Illumination

0.02Lux @(F/2.0,AGC ON), 0 Lux with IR

Shutter

1/30 sec to 1 / 100,000 sec

Lens

2.8mm @ F/2.5 Horizontal View Angle: 90°,Diagonal View Angle: 111°

Lens Mount

M12

Day & Night

IR cut filter

DNR

3D DNR

IR Range

Up to 15 feet (5m)

WDR

Digital WDR

Compression Standard

Video Compression Standards

H.264 Main profile

Audio

Built-in microphone and speaker

Video Bit Rate

Hi-Def, Standard and Basic, Adaptive bit rate

Audio Compression Rate

Adaptive Bit-rate


Max. Resolution

1280 x 720

Frame Rate

Up to 25fps(1280*720), Adaptive

Network Functions

Storage

Support Micro SD card (≤128GB)

Smart Alarm

Smart Motion Detection

One-key Configuration

SmartConfig (Wi-Fi One-key configuration)

Interface Protocol

Ezviz Cloud Proprietary Protocol

General Function

Dual Stream, Mirror Image

Wireless Parameters

Wireless Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

Support 20 MHz

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate

802.11b: 11Mbps, 802.11g :54Mbps, 802.11n :150Mbps

General Specifications

Operating Conditions

14⁰F to 122⁰F (−10 ℃ ~ 50 ℃), humidity less than 95% (non-condensing)

Power Consumption

5VDC ± 10%, 3W Maximum

Dimensions (inch)

5.04 x 2.28 x 1.50"(128mm x 58mm x 38mm )

Weight

0.26lb (120g)
